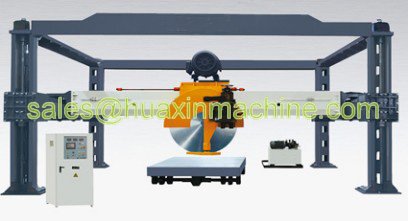

SZSJ160 Four-Column Two-way Diamond Disc Stone block cutting machine
NEXT QJS180 type Bridge Diamond Disc Stone Sawing Machines Back List PRE HMSJ180 Gantry Two-way Diamond Disc Natural Stone Block Cutting Machine


Specifications

SZSJ160 Four-column Two-way Diamond Disc Stone Sawing Machine, adopting diamond tools and high-speed cutting technology, mainly used for cutting and processing the blocks of marble and soft granite.

It has the following features:

1. When cutting the block to the maximum depth with vertical disc, it also can complete the bottom horizontal cutting with horizontal disc. If the top block is level, it can process from one layer to another directly.
2. It is easy to unload and with high ration of finished products.
3. It has the reasonable frame structure, high ratio of processing and working stable.
4. The blades sliding parts movement adpoting the hydraulic cylinder driven, adjustable feeding speed, and with fast return function, high working efficiency.
5. The end-beam adopting using rolls support and gear driven slicing structure, with high capacity, high slicing precision, long usage life, stable characteristics.
6, large size table, high load-carrying capacity, and having self-walking function, it can load large-size stone blocks.
7.The machine adopts PLC controlling system, so it has stable working conditions and high automatic.

Model

SZSJ160A
Marble
(hydraulic)

SZSJ160B
Granite
(lead screw)

SZSJ160C
(Option)

Maximum diameter of vertical disc

φ1600mm

Maximun numbers of vertical disc

1 pc

5 pcs (2cm)

1 pc

Maximum cross stroke

3700mm

Maximum vertical stroke

2200mm

Slicing moving stroke

2200mm

Maximum diameter of horizontal disc

Φ450mm--φ550mm

rotating speed of vertical disc shaft

695r(58m/s)

26,30,38,44m/s

rotating speed of horizontal disc shaft

2670r(77m/s)

Blade up-down speed

212mm/min

blade slicing speed

3-12mm/s

Feeding speed

0.3-16m/min

0.3-12m/min

0.3-16m/min

Walking motor

(oil pump)7.5KW

3+4.5KW

(oil pump)7.5KW

Up-down motor

5.5KW

Slicing motor

0.55KW

Main motor

90KW

Horizontal disc motor

15KW

Table motor

1.5KW

Total power

120.05KW

weight

21000Kg

22000KG

Overall dimension

7700×5100×3800mm
