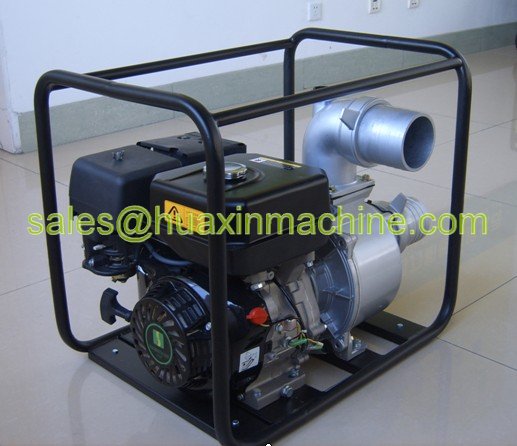

ZB100 Gasoline Water Pump

Engine model: 177F(9HP)

Engine type: OHV,25°Tilt,single cylinder,forced air cooling,4-stroke

Engine max output(KW/r/min): 6/3600

Engine bore×stroke mm: 77×58

Engine displacement: 270ml

Engine compression ratio: 8.5:1

Engine starting system: recoil start

Low oil annunciater : yes

Engine oil capacity: 1.1L

gasoline Fuel tank capacity: 6L

Inlet dameter: 100mm(4")

Outlet dameter: 100mm(4")

Max.lift head:16m

Max.suction head: 7m

Noise(Away from 7m)［db(A)］: 85

DimensionL×W×H(mm): 650*510*590

NetWeight(Kg): 50kg

20(pes): 144

40HQ(pes): 288
