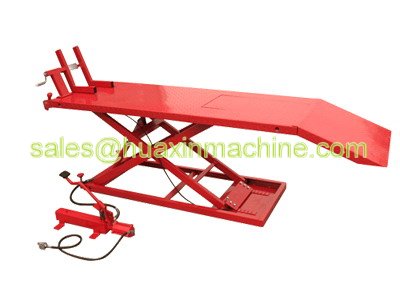

HX04152AQ Motorcycle lift
NEXT HX04152Q-J-M Motorcycle lift Back List PRE HX04152Q Motorcycle lift


Name： HX04152AQ
Sort： MOTORCYCLE LIFT
Description：
Motorcycle lift table
Model Capacity(LB) HEIGHT (MM) G.W.(KG) N.W.(KG) Package size(cm) table size(cm) ramp size(cm) QTY/20’CY(PCS)
MIN MAX
HX 04081 800 180 680 126 104 198*58*26 190*53 42*53 80
HX 04101 1000 180 780 145 120 217*61*28 206*55 60*55 72
HX  04101D 1000 180 780 166 138 228*73*28 220*68 60*55 56
HX  04101D-JQ 1000 180 780 167 142 228*73*28 206*55 60*55 56
HX 04102 1000 180 780 152 125 221*68*28 210*61 60*40 64
HX 04102Q 1000 180 780 155 128 221*68*28 210*61 60*40 64
HX 04082 800 210 780 115 95 155*68*30 175*50 45*50 88
HX 04082Q 800 210 780 118 98 155*68*30 175*50 45*50 88
HX 04104 1000 220 760 160 135 206*74*28 200*60 60*60 56
HX 04104Q 1000 220 760 163 138 206*74*28 200*60 60*60 56
HX 04152Q 1500 180 830 200 175 204*77*30 195*122 58*122 52
33 32 197*28*7
13 12 67*27*24
HX 04152AQ 1500 180 830 200 175 204*77*30 195*71 58*71 52
16 15 67*27*24
HX 04152Q-J 1500 180 830 200 175 204*77*30 195*122 58*122 52
33 32 197*28*7
16 15 67*27*24
HX  04152Q-M 1500 180 830 294 260 204*94*36 195*122 85*20 36
HX 04153Q 1500 180 830 233 206 204*124*32 195*119 58*119 24
HX  04103A 1000 85 340 13 12.5 45*27*10 38*23 * 1600
HX  04103F 1100 90 405 15 14 53*34*10 45*15 * 1420
HX  04301 300 350 870 31 29 49*44*37 41*35 * 342
HX 04302 300 320 840 30 28 49*44*34 41*35 * 342
HX  04303 300 350 870 32 30 49*44*37 41*35 * 342
HX  04304 300 350 870 31 29 49*44*37 41*35 * 342
