DESCRIPTION:
More geat, wide speed range. With 27 forward gear and 9 reverse gear, main gear shift synchronous, the speed rang is 0.5-42.3km/h, that can meet various operation demand and the work efficiency is high.
YTO 6 cylinder Diesel (Naturally aspirated and turbo-supercharging),quiet,low oil consumption,large torsional moment repertory.
The first enterprise of China which adopt driving front wheel with electric liquid and brake 4 wheel automatically in course
of high speed transport operation.
Adopt whole boarding structure,suspensory footplate,control handle in side that make the drive comfortable.
Adopt hydraulic steering to make operation handiness.
Independent double speed P.T.O and synchronous P.T.O.can meet various operation demand.
Adopt Germany LUK Clutch.
Hydraulic lifting with draft and position adjustment,floating position lifter.
Dual hydraulic output quick-shift device.

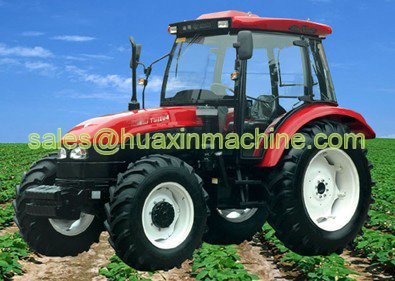

| Tractor model |
TS1204 |
| General specifications |
| Type |
4X4 |
Overall dimensions
LXWXH(mm) |
4,694X2,042X2,879 |
| Constructional weight(kg) |
4,200 |
| Traction force(kn) |
42 |
| Wheel base(mm) |
2,659 |
| Front wheel tread |
1,782~2,206 Adjustable |
| Rear wheel tread |
1,504~2,074 Adjustable |
| Min land clearance(mm) |
475 |
| engine |
| Type |
LRC6105T51 |
| Rated power(kw) |
88.20 |
| Fuel consumption(g/kw.h) |
≤240 |
| Transmission |
| Cluth |
LUK clutch(sing disc,dry-type,dual stage,butterfly's shape spring is compressed tightly,independent operation) |
| Gear box |
Combine style(3+1)X3X2;18 forward gear,6backward gear;equiped with creeper (3+1)X3X3;27 forward gear,9backward gear,main gear box:constant engaged by oblique gear |
| Steering gear |
The all hydraulic power steering |
| Working device |
| Max lifts capacity |
>25 |
| PTO Shaft type |
Independent and synchronous P.T.O. |
| PTO Shaft rated speed |
540/1000 760/1000 540/760 | |
