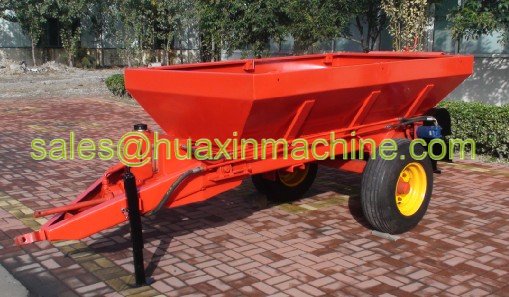

HFC series of fertilizer spreader
model |
unit |
HFC-2500 |
HFC-5500 |
HFC-7500 |
HFC-12000 |
|
Loading capacity |
m³ |
1.73 |
2.8 |
3.75 |
7.00 |
|
Loading weight |
kg |
2500 |
5500 |
7500 |
12000 |
|
Overall size height |
mm |
1680 |
1770 |
1920 |
2370 |
|
Overall size width |
mm |
1740 |
1820 |
1900 |
2250 |
|
Overall size length |
mm |
3800 |
4700 |
4700 |
6250 |
|
Spreading range |
m |
7-14 |
7-16 |
7-25 |
7-25 |
|
Spreading width |
mm |
400-800 |
|
Standard tires |
|
750*16 |
750*16 |
900*16 |
125/80*16 |
|
Adjustable flow |
|
33a1200L/min |
33a1200L/min |
8a1200L/min |
8a1200L/min |
|
Tractor HP required |
hp |
50 |
75 |
90 |
100 |
|
Total weight |
kg |
960 |
1350 |
1500 |
2320 | |
