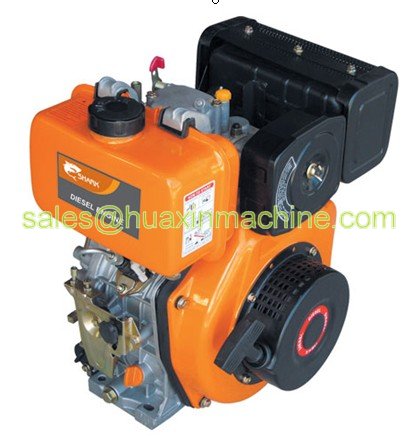

C178F DIESEL ENGINE

Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine

Bore x stroke [mm]:78x62

Displacement [ml]:296

Engine speed [rpm]:3000/3600

Compression ratio:20:01:00

Rated output power [KW (Hp)]:3.7 (5.03)/3000

Fuel:0# or - 10# light diesel oil

Fuel tank volume [L (gal.)]:3.5 (0.77)

Fuel consumption rate [g(ml)/KW.h]:283

Lubrication oil volume [L (gal.)]:1.1 (0.24)

Power-Take-Off: Crankshaft

Starting system:Recoil

Overall dimension (LxWxH) [mm]:385x420x450

Net weight:31KG
